Silica analyzer MARK -1202
Silica analyzer MARK -1202 is intended for high-precision measurement of silica dioxide in process water of thermal and nuclear power plants, along with monitoring of water conditioning processes in diverse industries. The analyzer is based on photometric way of measurement with chemical agents automated batching.
MARK-1202 can be applied not only as an on-line one, but also for laboratory periodic monitoring, with that it will significantly facilitate silica measurement if compared with the photometric method as per ОСТ-34-70-953.1-88.
Warranty – 12 months.
Basic kit:

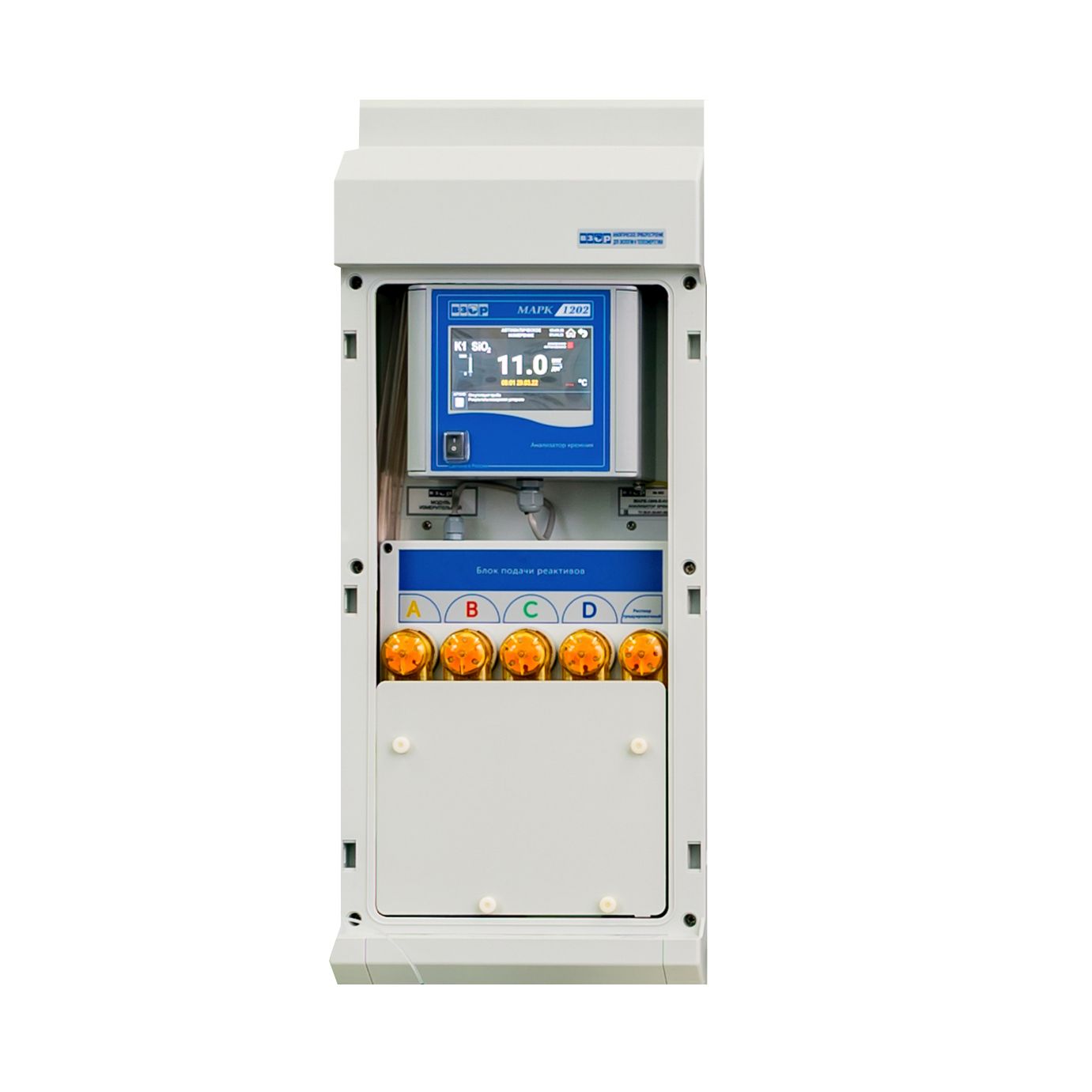

- Measuring module
- Converting unit

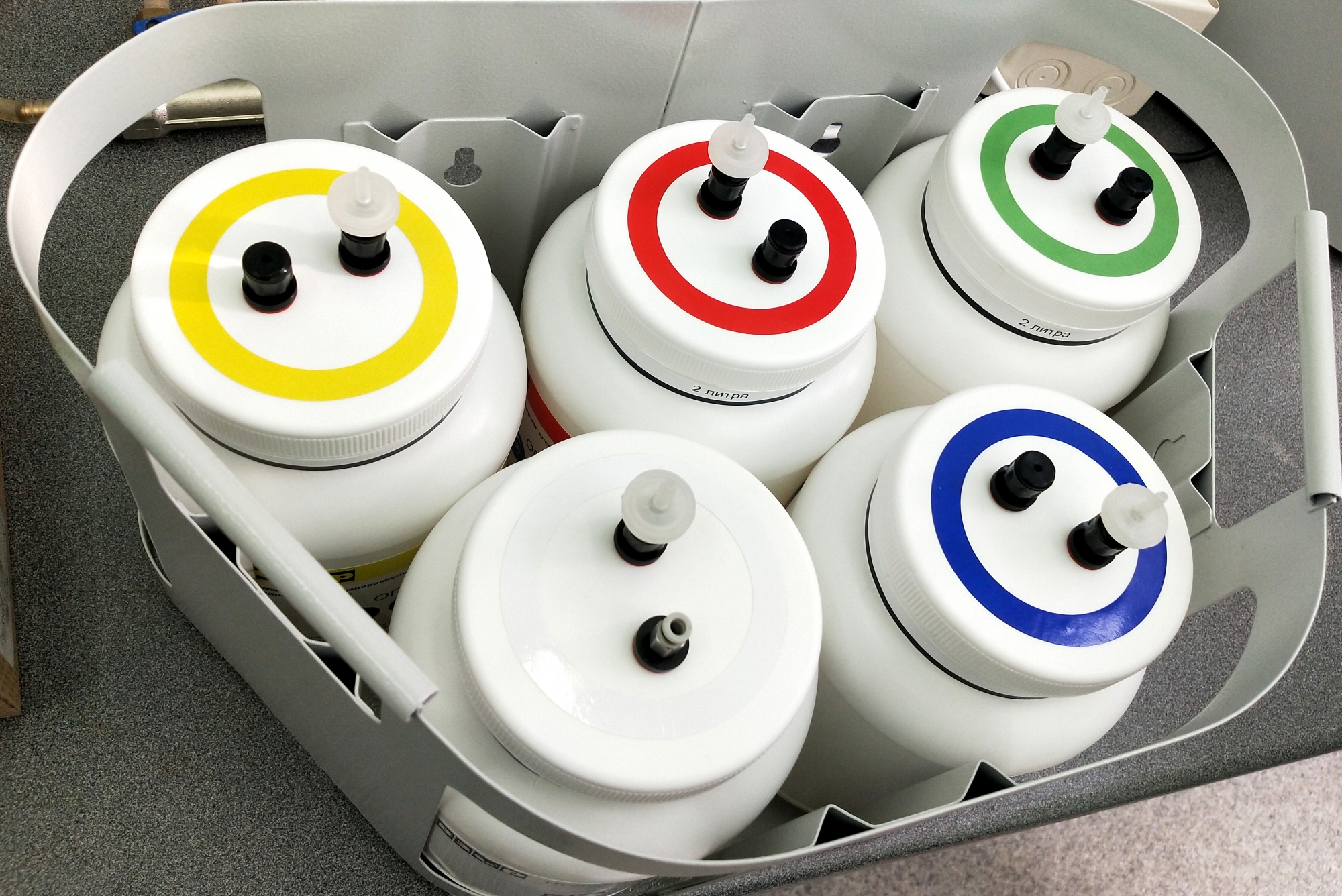

- Chemical agents stand
- Power supply unit
Optionally:
-

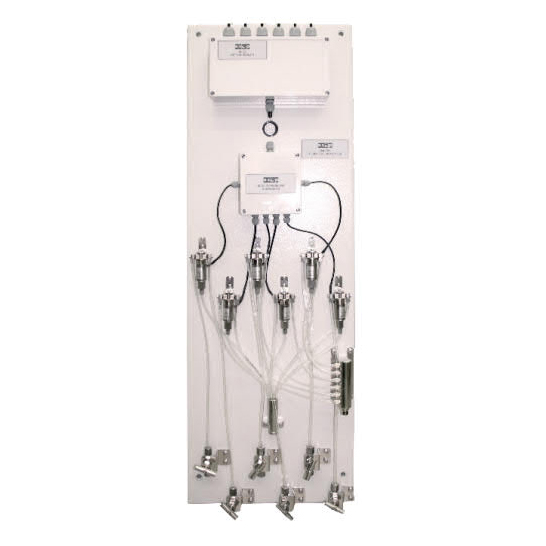

Sample switchboard
-
Connecting cables
The device is available in various configurations. Please, contact the manager.
New
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- Warranty12 months
The price depends on the configuration.
Specify the price from the manager!
Specify the price from the manager!
on order, from 75 working days
Ask for a price
Ask a Question Delivery
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
Payment
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Equipment questionnaire
Video
This video will help you choose the right equipment when ordering the device. You will also learn about the main areas of application, advantages, measurement modes, features of the analyzer's startup, and more.
Advantages
Multiflow analysis capability
- From 1 to 6 channels
- Independent indication, digital and current outputs
Multipurpose analyzer
- The analyzer can be applied both as on-line (for continuous measurements) and laboratory (for periodic monitoring)
Small volume sample for laboratory analysis
Minimal maintenance
- Introspection
- Autocalibration

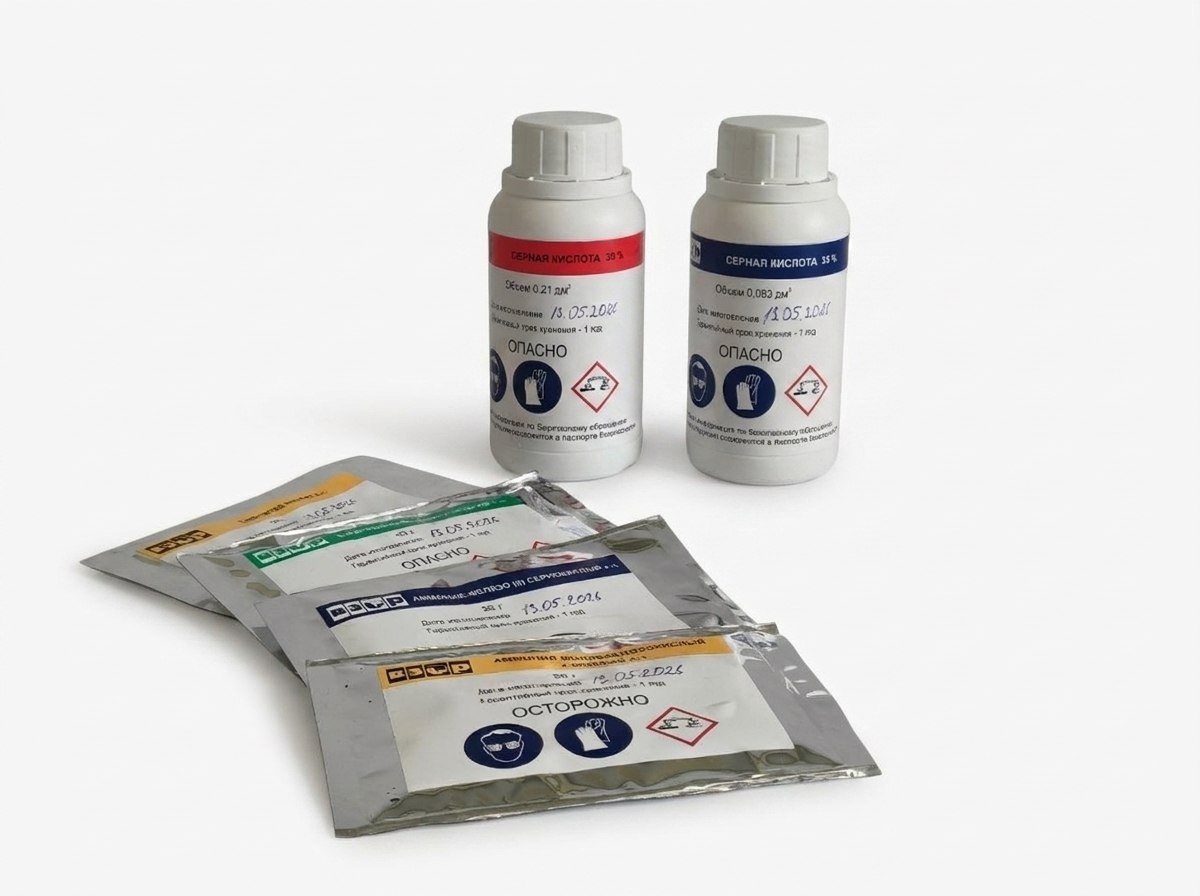

Minimal chemical agents consumption
Chemical agents replacement interval – once per 3 months of uninterrupted duty
Clean, comprehensible interface
Backlit touch-sensitive indicator
Service life of at least 10 years
Mean time to failure 40 000 hours
Specification
|
|
Measuring range
|
Resolution
|
Accuracy
|
|---|---|---|---|
|
SiO2, mkg/dm3
|
0,1-5000
|
0,1
|
±(1+0,05*А) in the range 0,1-500;
±0,07*А in the range 500-5000
|
|
Temperature, °С
|
0-50
|
0,1
|
±0,3
|
|
|
|
|
А –measured values
|
|
|
Module |
|
|
|
Dimensions, mm
|
300 * 140 * 750
|
|
|
|
Weight, kg
|
10
|
|
|

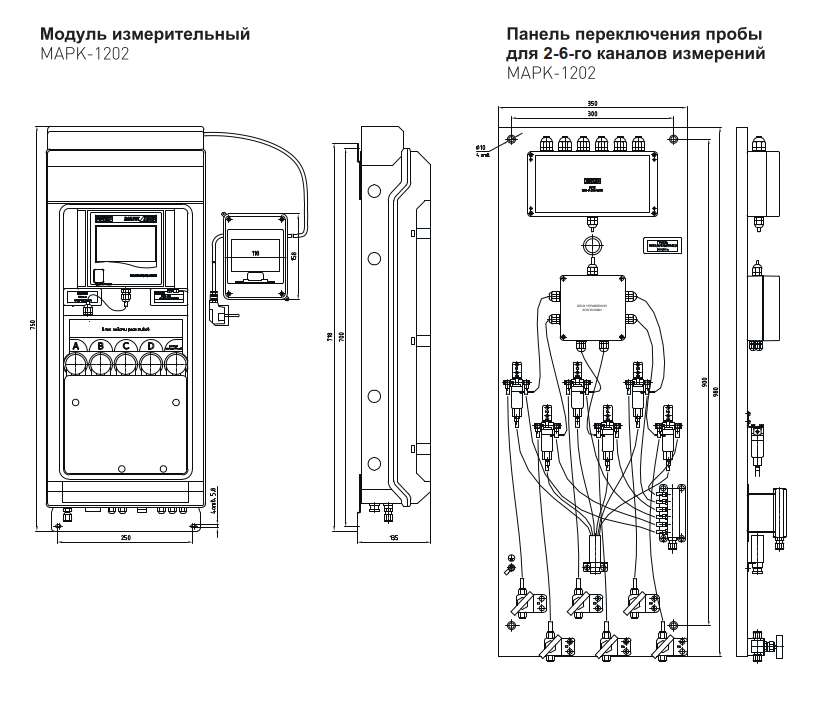

Overall and fixing dimensions
Module Panel
