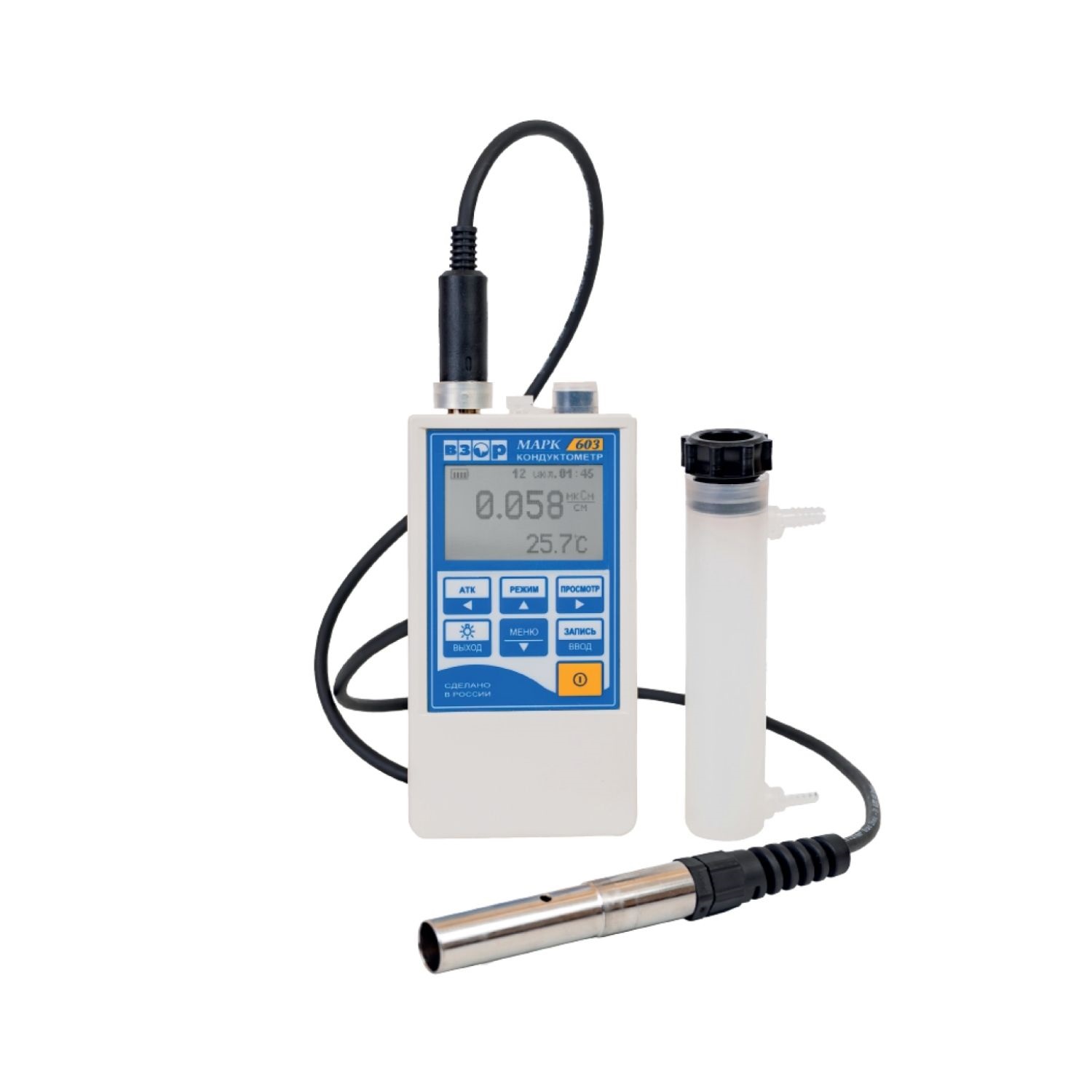

MARK-603/1 Conductivity meter
Basic kit:
- Converting unit
- Sensor CS-015 or CS-15
- Flow-through chamber
- Battery type AA – 2 pcs.
- Operation manual
Optionally:
- Sensor CS-015 or CS-15

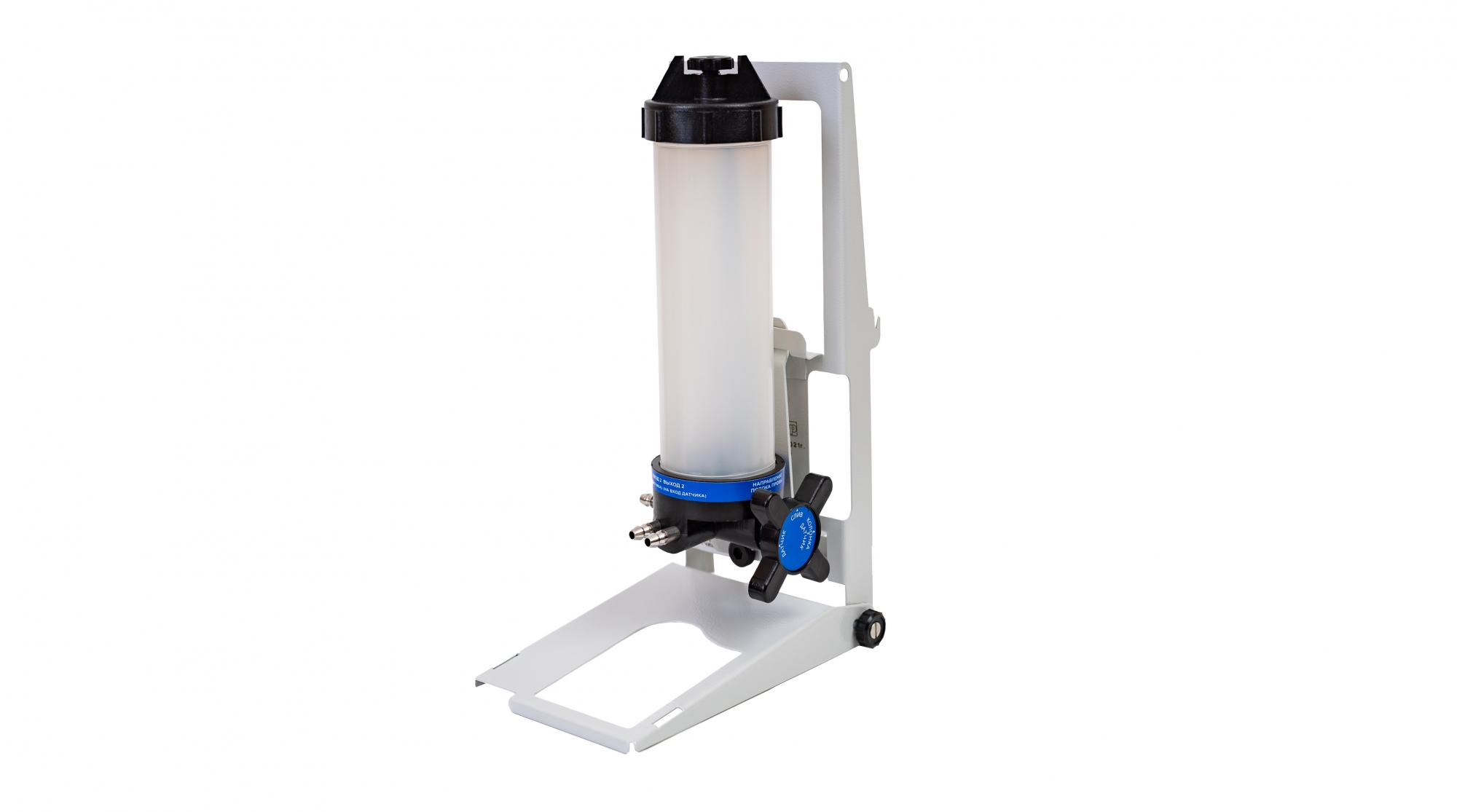

- Ion-exchange column IOC603

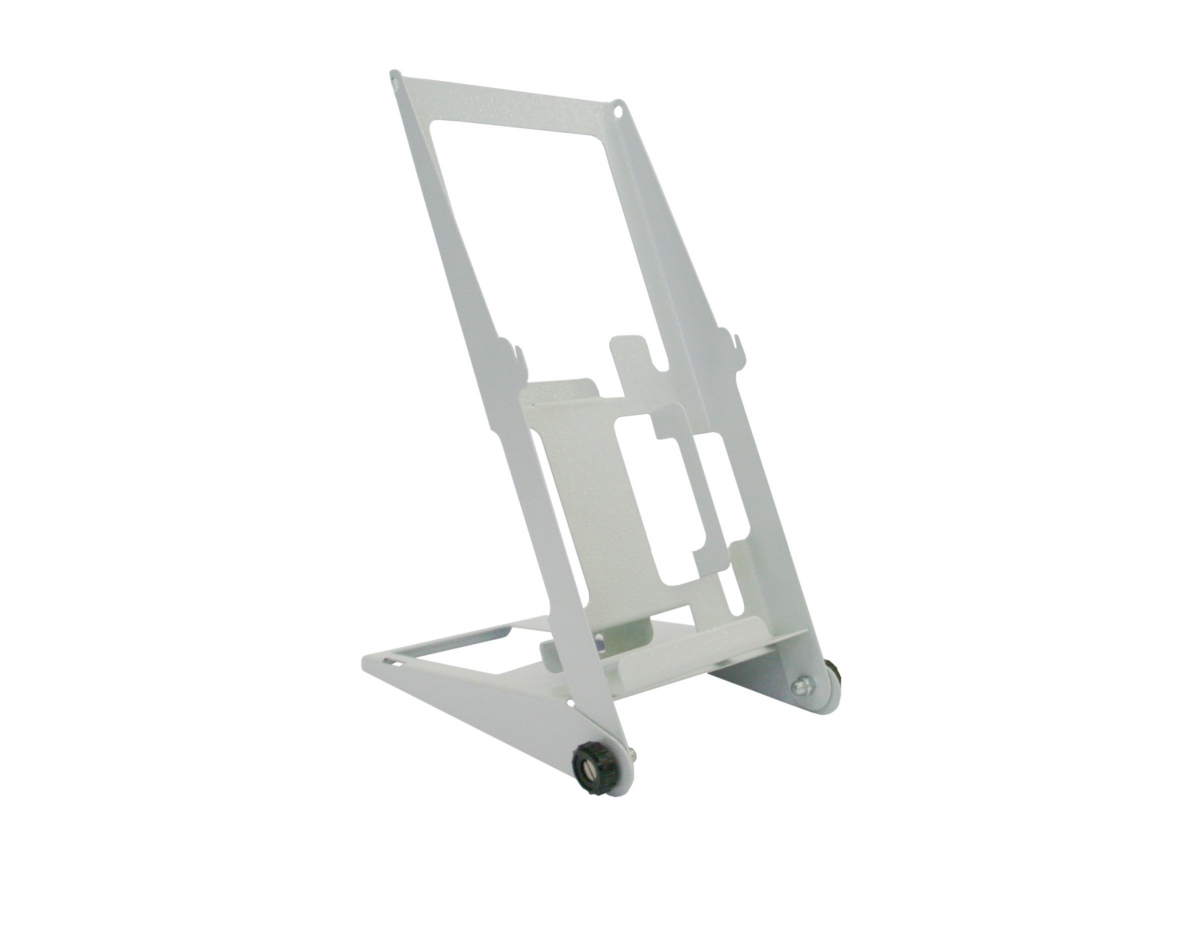

- Bearing panel BP603

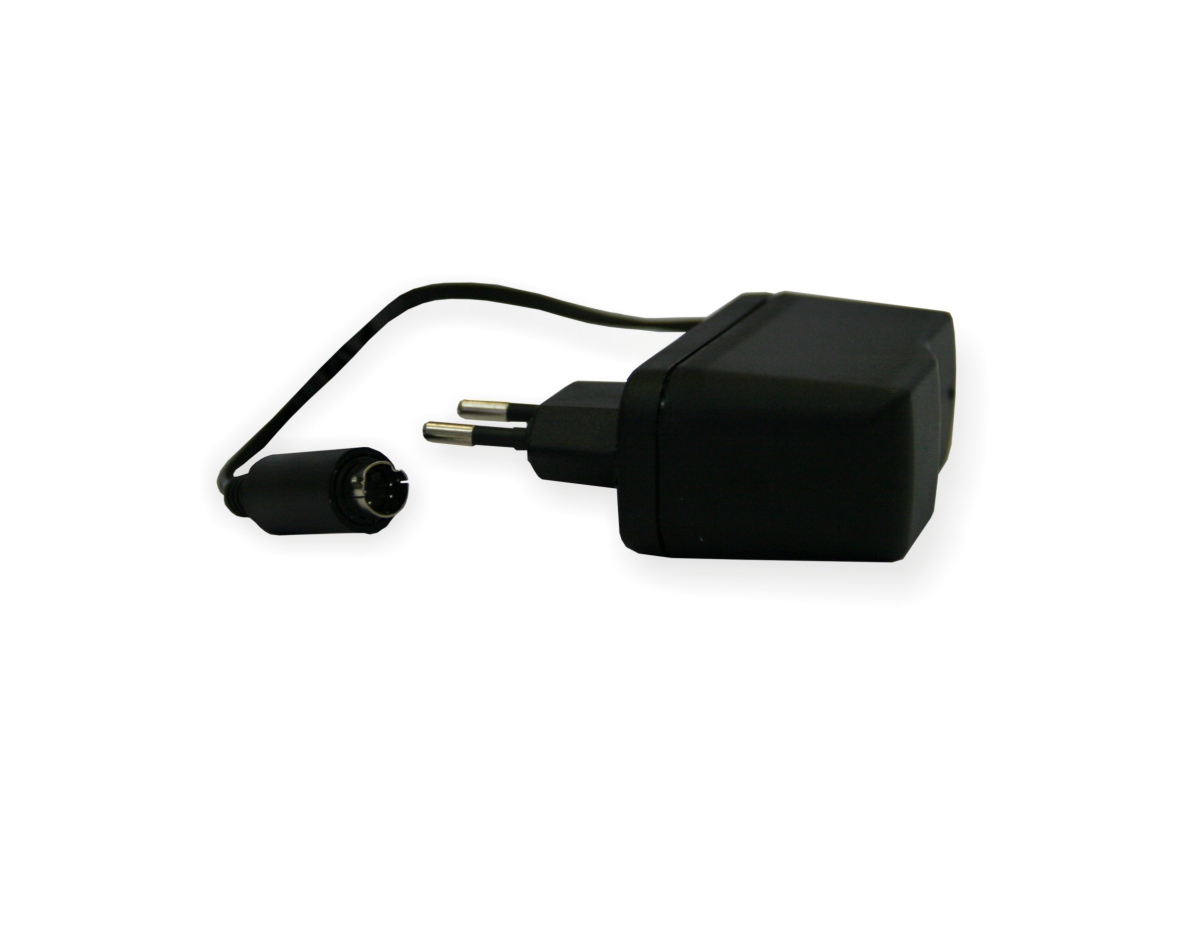

- Power supply unit
- AA rechargeable batteries set

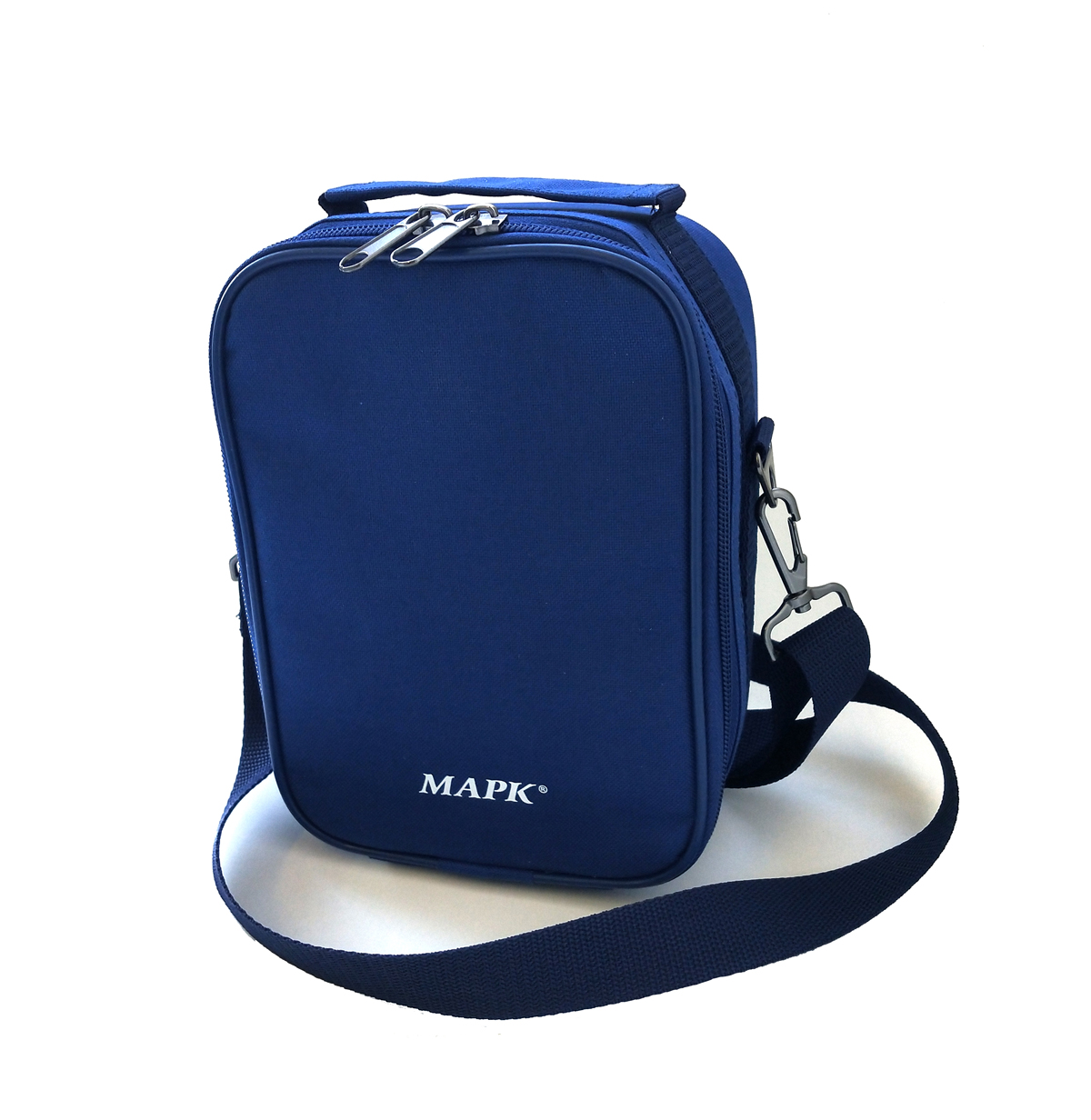

- Devise bag
The device is available in various configurations. Please, contact the manager.
- Country of OriginRussia
- ManufacturerVZOR
- MobilityPortable
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Карта заказа МАРК-603
Видеообзор МАРК-603
Данное видео поможет Вам правильно выбрать необходимую комплектацию при заказе прибора. Также из видеообзора Вы узнаете об основных областях применения, преимуществах, режимах измерений, особенностях ввода анализатора в работу и многое другое.
Advantages
IP65
Compact waterproof handheld meter allows use in dirty and wet environment.
Dual automatic temperature compensation for high purity water,
selectable linear coefficient of temperature compensation
Stainless steel flow-dip sensor requires no calibration
Scratchpad
Non-volatile memory up to 100 data points.
Introspection system
Ion-exchange column with a switch of sample current
USB port and related software
The ability to create and manage archive data on a PC.
Graphic LCD display with backlight
Easy input of all parameters by keypad.
Low power consumption
Battery lifespan up to 600 hours of work.
Service life of at least 10 years
Mean time to failure 20000 hours
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|---|---|---|---|
|
Conductivity, µS/cm |
0-20001 0-200002 |
0,001 |
±(0,003+1,5% of measured value) ±(0,05+1,5% of measured value) |
|
Salinity, mg/L |
0-10001 0-100002 |
0,001 |
±(0,004+0,02*С) ±(0,06+0,02*С) |
|
Temperature, °С |
0-75* |
0,1 |
±0,3 |
|
|
*automatic temperature compensation range, ¹ with sensor CS-015, ² with sensor CS-15
|
||
|
|
Converting unit |
Sensor CS-015 |
Sensor CS-15 |
|
Dimensions, mm |
65*130*28 |
Ø15*130 |
Ø15*160 |
|
Weight, g |
120 |
80 |
110 |
|
|
|||
|
Port |
USB |
||
|
Power supply |
battery type AA – 2 pcs. | ||
Environment requirements
|
Temperature, °С |
0-75 |
|
Flow rate of water running through the chamber, dm³/min |
0,1-1 |
