MARK-1102 Сonductivity/ concentration meter
Basic kit:
- Converting unit
- Sensor unit SU-1102
- 5 meter connecting cable C1102.5
- Operation manual
Optionally:
- Sensor unit SU-1102 for the second channel
- Connecting cable C1102.L up to 100 m
- Dip mounting kit
- Flow mounting kit
- In-line mounting kit
The device is available in various configurations. Please, contact the manager.
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Video
This video will help you choose the right equipment when ordering the device. You will also learn about the main areas of application, advantages, measurement modes, features of the analyzer's startup, and more
Advantages
Contactless inductive sensor resistant to aggressive mediums
2 channels
Programmable ranges of measurements for each channel.
Independent measurements in two points.
Possibility of placing the converting unit on the remote distance from the point of control
Sensor cable length up to 100 m.
Communication with external devices
2 galvanic isolated current outputs 0–5/4–20 mA.
RS 485 galvanic isolated port.
Programmable setpoints for each channel.
Durable aluminum case IP65
Instrument is protected from dust and moisture.
Graphic LCD display with backlight
Easy input of all parameters by keypad.
Various types of installation (dip, flow, in-line)
Service life of at least 10 years
Mean time to failure 40 000 hours
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|---|---|---|---|
|
Conductivity, µS/cm |
0 … 1000 |
0,1 |
±(1 + 4% of measured value) |
|
Concentration, % |
0 … 15 0 … 10 |
0,01 |
±(0,03 + 4% of measured value) |
|
Temperature, °С |
0 … 70* |
0,1 |
±0,5 |
*automatic temperature compensation range
|
Mounting |
Wall |
Panel |
|---|---|---|
|
Dimensions, mm |
266*170*95 |
252*146*100 |
|
Weight, kg |
2,60 |
2,60 |
|
Power supply |
220 or 36V, 50 Hz /10V·А |
Environment requirements:
|
Temperature, °С |
0 … 70 |
|
Ambient overpressure, bar, max. |
0,8 |
Overall and fixing dimensions
Panel mounting
Panel mounting

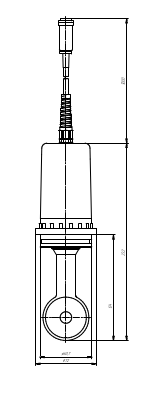

Sensor unit BD-1102/1 МАRК-1102
ВР56.02.740 МАRК-1102
ВР56.02.760
ВР56.02.700
МАRК-1102
Documents
Additionally

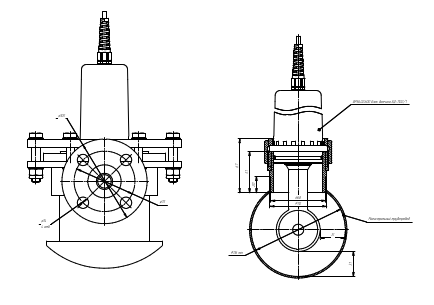

Flow-mount kit BD-1102

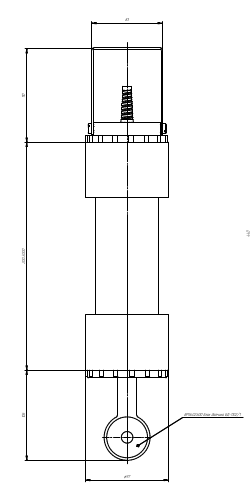

Dip mounting kit BD-1102

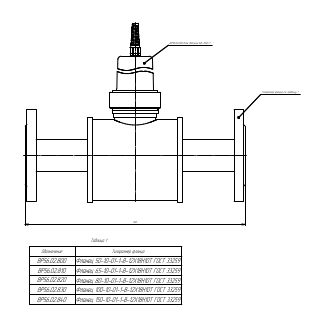

In-line mounting kit BD-1102

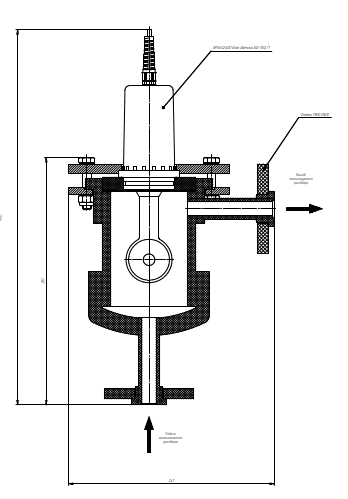

Polypropylene Cuvette VR56.02.760 for BD-1102/1
Sensor unit SU-1102/1 for the second channel
