MARK- 1002 sodium analyzer
Basic kit:
- Converting unit
- Hydraulic panel HP-1002 or HP-1002T
- Power supply unit
- 5 meter connecting cable C1002.5
- Operation manual
Optionally:
- Hydraulic panel and power supply unit for the second channel
- Connecting cable C1002.L up to 100 meters
- Sample collecting kit
- OPC-server
The device is available in various configurations. Please, contact the manager.
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Карта заказа МАРК-1002 / МАРК-1002Р / МАРК-1002Т
Advantages
2 channels
Programmable ranges of measurements for each channel.
Independent measurements in two points.
Convenience and accuracy of measurement, minimum maintenance
Measuring range from 0,01 CNa. Measurement accuracy 6%.
Long inter-calibration period (up to 6 months).
Dual automatic temperature compensation.
Automatic batching device of the alkalizing reagent.
Absence of KCL flask.
1 solution calibration
If necessary, 3-point-calibration is possible.
«Active» sensor unit
Sensor cable length up to 100 m.
Communication with external devices
2 galvanic isolated current outputs 0–5/4–20/0–20mA.
RS 485 galvanic isolated port.
Programmable setpoints for each channel.
Service life of at least 10 years
Mean time to failure 40 000 hours
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|
|---|---|---|---|---|
|
CNa, ppb |
МАRК-1002
МАRК-1002Т
|
0,7-1000
1000-30001
0,01-1000
|
0,1
0,01
|
±(0,5+0,12*CNa)
±0.3*CNa
±(0,03+0,12*CNa)
|
|
pNa |
МАRК-1002
МАRК-1002Т
|
4,36-7,52 4,06-7,521 |
0,01 | |
|
Температура, °C |
0-50 |
0,1 |
±0,3 |
|
|
|
Converting unit |
Hydraulic panel |
|
|---|---|---|---|
|
Mounting |
Wall |
Panel |
|
|
Dimensions, mm |
266*170*95 |
252*146*100 |
300*650*200 |
|
Weight, kg |
2,6 2,6 |
4,0 |
|
|
Power supply |
220V, 50Hz /10V·А |
24 В |
|
Environment requirements
|
Temperature, °С |
10-40 |
|
Sample flow rate, dm³/min |
0,05-3 |
|
Temperature of ambient air, °С |
5-50 |

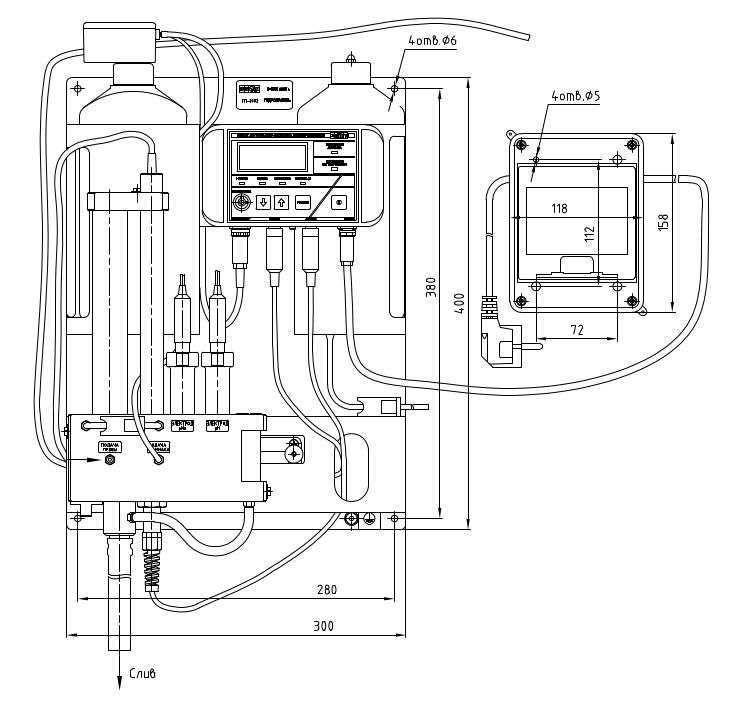

Overall and fixing dimensions
Panel mounting
Wall mounting
Hydraulic panel HP-1002 or HP-1002T
