Dissolved oxygen meter MARK-409
Basic kit:
- Converting unit
- DO sensor DO-409 with 5 meter cable

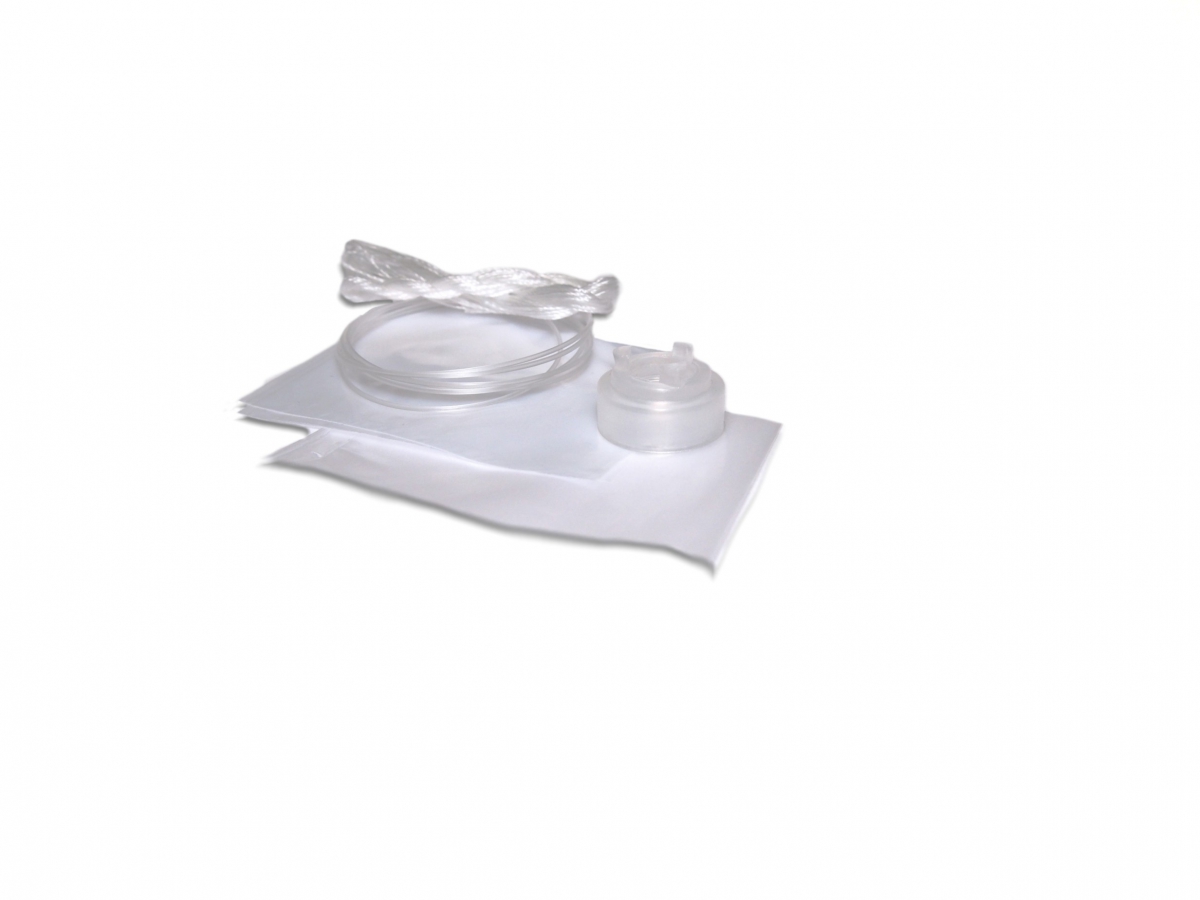

- Spare parts kit
- Electrolyte
- Hydraulic panel HP-409 or flow-stabilizing module FSM-402M
- Operation manual
Optionally:
- DO sensor DO-409 for the second channel
- Hydraulic panel HP-409 or flow-stabilizing module FSM-402М for the second channel
- Extension cable up to 95 m
- OPC-server
The device is available in various configurations. Please, contact the manager.
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Карта заказа МАРК-409
Advantages
2 channels
Programmable ranges of measurements for each channel.
Independent measurements in two points.
Convenience and accuracy of measurement, minimum maintenance
Automatic temperature and barometric pressure compensation.
Automatic one-point calibration in air.
Long-lived sensor
Lifetime of the oxygen sensor is min. 10 years.
Possibility of placing the converting unit on the remote distance from the point of control
Sensor cable length up to 100 m.
Communication with external devices
2 galvanic isolated current outputs 0–5/4–20/0–20mA.
RS-485 galvanic isolated port.
Programmable setpoints for each channel.
Durable aluminum case IP65
Instrument is protected from dust and moisture.
Graphic LCD display with backlight
Easy input of all parameters by keypad.
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|---|---|---|---|
|
DO concentration, ppm |
0-101 |
0,0001 |
±(0,0027+ 3,5% of measured value) |
|
Temperature, °С |
0-70* |
0,1 |
±0,3 |
|
|
1 |
||
|
Mounting |
Wall |
Panel |
|
|
Dimensions, mm |
266*170*95 |
252*146*115 |
|
|
Weight, kg |
2,60 |
2,60 |
|
|
|
|
||
|
Power supply |
220 V, 50 Hz /10 V · А |
||
Environment requirements
|
Temperature, °С |
0-70 |
|
Sample flow rate through a flow-stabilizing module, dm³/min |
0,07-5 |
|
Sample flow rate at the hydraulic panel input, dm³/min |
0,08-5 |
Hydraulic panel HP-409 provides stabilization, filtration, indication of the sample flow and temperature protection
Hydraulic panel HP-409 is recommended for use with a large number of impurities, primarily of iron oxides
Overall and fixing dimensions
Panel mounting
Wall mounting
HP-409
Water flow stabilization module МАRК-409
ВР11.03.000 МАRК-409
DO sensor DO-409
