Dissolved oxygen meter MARK-409T
Basic kit:
- Converting unit
- DO sensor DO-409T
- Hydraulic panel
- DO sensor spare parts kit
- Electrolyte
- Operation manual
Optionally:
- DO sensor DO-409Т for the second channel
- Hydraulic panel for the second channel
- Extension cable up to 99 m
- Set of chemical reagents for preparing "zero" solution
The device is available in various configurations. Please, contact the manager.
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Карта заказа МАРК-409Т
Advantages
Convenience and accuracy of measurement
Measurement accuracy ±(0,001+3,5% of measured value) ppm.
Ability to work at small flow rates (min. 25 ml/min).
Routine maintenance 1 per year.
NEW high-stable sensor
High reaction speed.
Sealed ultra strong water-repellent membrane membrane.
The increased mechanical resistance of the construction.
Sleep mode when stored in air.
2 channels
Programmable ranges of measurements for each channel.
Independent measurements in two points.
Possibility of placing the converting unit on the remote distance from the point of control
Sensor cable length up to 100 m.
Communication with external devices
2 galvanic isolated current outputs 0–5/4–20/0–20mA.
RS-485 galvanic isolated port.
Communication protocol MODBUS RTU.
NEW Hydraulic panel HP-409T
Possibility of placement the measurement system at the sole panel.
Stainles conductive lines.
Regular maintenance and sensor calibration – without flow interruption.
Service life of at least 10 years.
Mean time to failure 20000 hours.
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|---|---|---|---|
|
DO concentration, ppm |
0-10 |
0,0001 |
±(0,001+3,5% of measured value) |
|
Temperature, °С |
0-70* |
0,1 |
±0,3 |
|
*automatic temperature compensation range |
|||
Environment requirements
|
Temperature, °С |
0-70 |
|
Water flow rate, ml/min, min. |
25 |
|
Ambient overpressure, bar, max. |
0,1 |
|
|
Converter block |
Hydraulic panel |
|||
|---|---|---|---|---|---|
|
Variation |
Wall-mounted |
panel-mounted |
ГП-409Т/1 |
ГП-409Т/2 |
ГП-409Т/С |
|
Dimentional sizes, mm |
266*170*95 |
252*146*115 |
280*410*110 |
280*730*110 |
350*990*113 |
|
Weight, kg |
2,60 |
2,60 |
3,30 |
4,40 |
6,30 |
|
|
|
|
|
|
|
|
Power supply |
220 В или 36 В, 50 Гц / 10 В*А | ||||
|
|
|||||

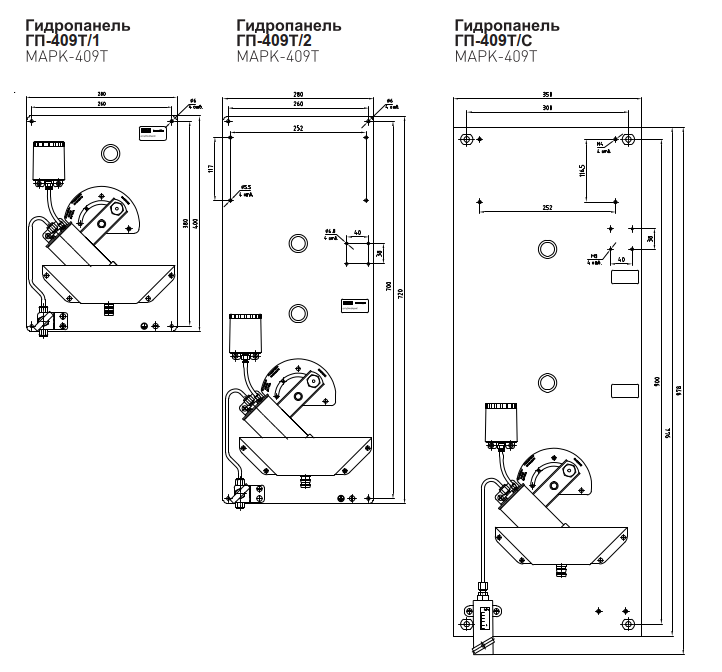

Overall and fixing dimensions
Panel mounting
Wall mounting

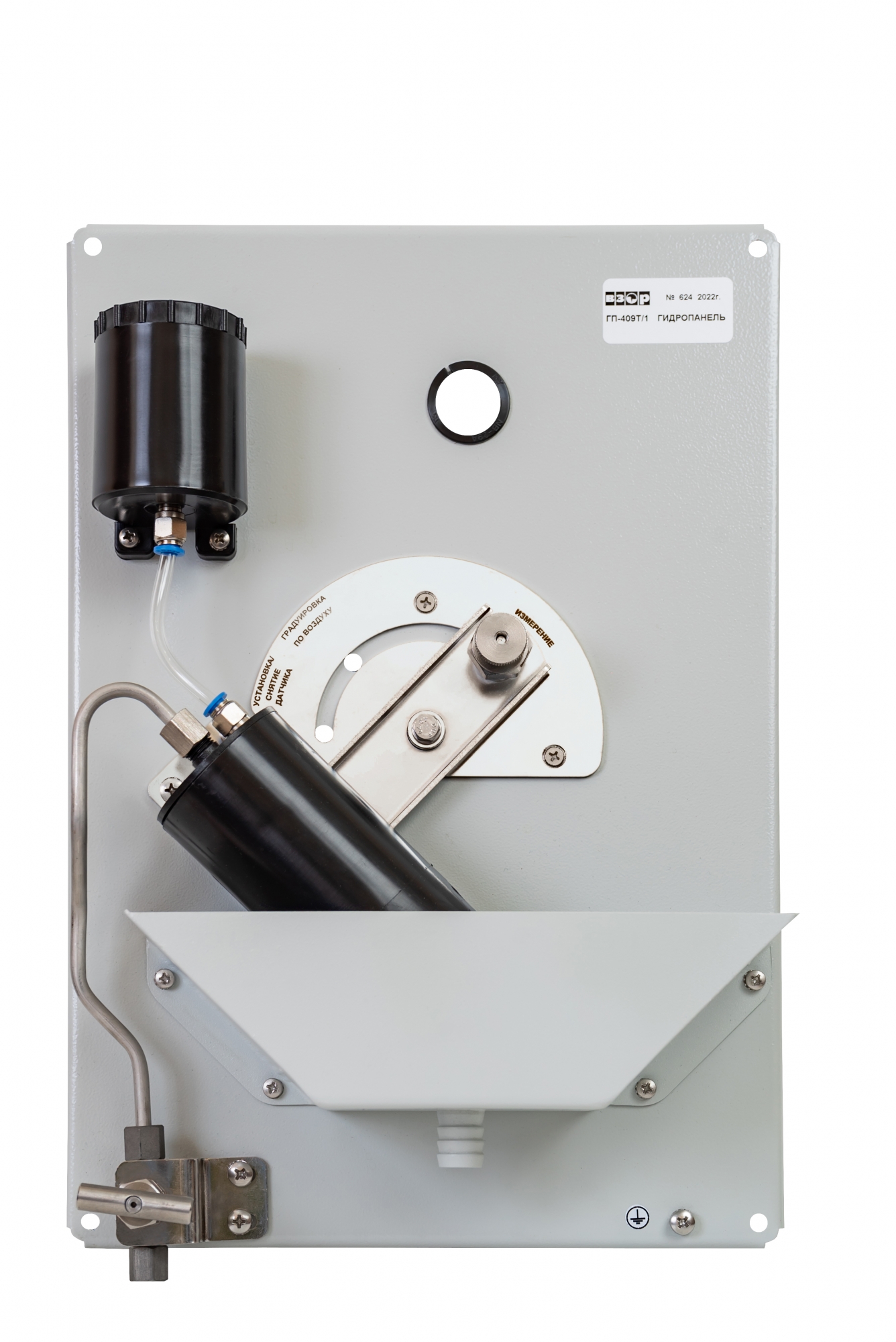

Hydraulic panel МАRК-409Т

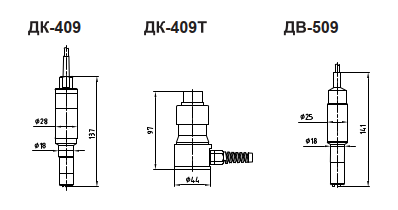

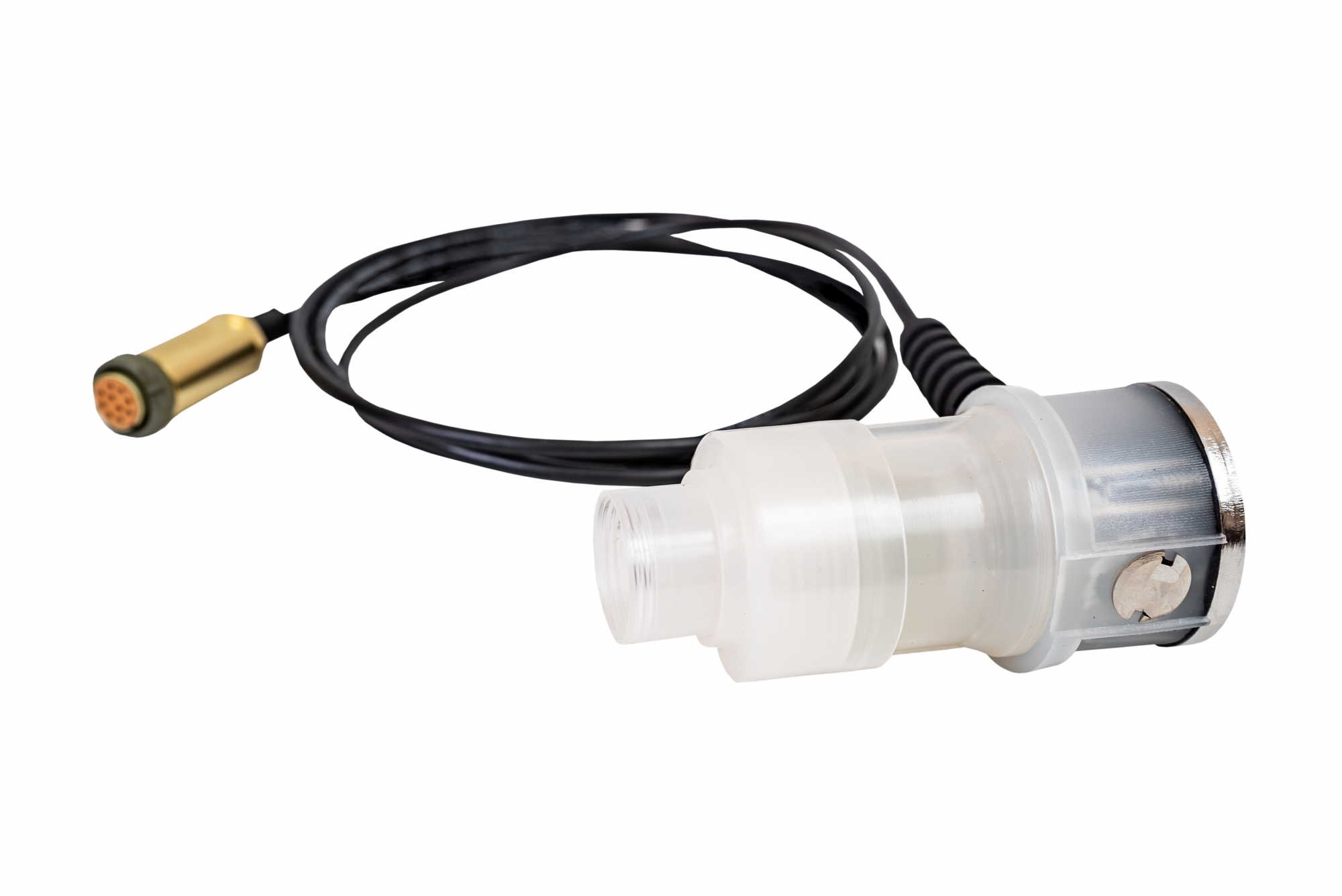

DO sensor DO-409T
