MARK-509
Basic kit:
- Converting unit
- DH sensor
- Spare parts kit
- Calibrator
- Electrolyte
- Hydraulic panel HP-409 or flow-stabilizing module FSM-402M
- Operation manual
Optionally:
- DH sensor DH-509 for the second channel
- Hydraulic panel HP-409 or flow-stabilizing module FSM-402M for the second channel
- Extension cable up to 95 m
The device is available in various configurations. Please, contact the manager.
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Карта заказа МАРК-509
Advantages
2 channels
Programmable ranges of measurements for each channel.
Independent measurements in two points.
Convenience and accuracy of measurement, minimum maintenance
Dual automatic temperature and barometric pressure compensation.
Long-lived sensor
Lifetime of the hydrogen sensor is min. 10 years.
Possibility of placing the converting unit on the remote distance from the point of control
Sensor cable length up to 100 m.
Communication with external devices
2 galvanic isolated current outputs 0–5/ 4–20 mA.
RS 485 galvanic isolated port.
Programmable setpoints for each channel.
Durable aluminum case IP65
Instrument is protected from dust and moisture
Graphic LCD display with backlight
Easy input of all parameters by keypad.
Service life of at least 10 years
Mean time to failure 40000 hours
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|---|---|---|---|
|
DH concentration, ppb |
0-20001 |
0,001 |
±(3+4% of measured value) |
|
Temperature, °С |
0-70* |
0,1 |
±0,3 |
|
|
*automatic temperature compensation range,
¹ programmable
|
||
|
Mounting |
Wall |
Panel |
|
|
Dimensions, mm |
266*170*95 |
252*146*115 |
|
|
Weight, kg |
2,60 |
2,60 |
|
|
|
|||
|
Power supply |
220V, 50Hz/10V·А |
||
Environment requirements
|
Temperature, °С |
0-70 |
|
Sample flow rate through the flow-stabilizing module, dm³/min |
0,07-5 |
|
Sample flow rate at the hydraulic panel input, dm³/min |
0,08-5 |
Hydraulic panel HP-409 provides stabilization, filtration, indication of the sample flow and temperature protection
Hydraulic panel HP-409 is recommended for use with a large number of impurities, primarily of iron oxides
Overall and fixing dimensions

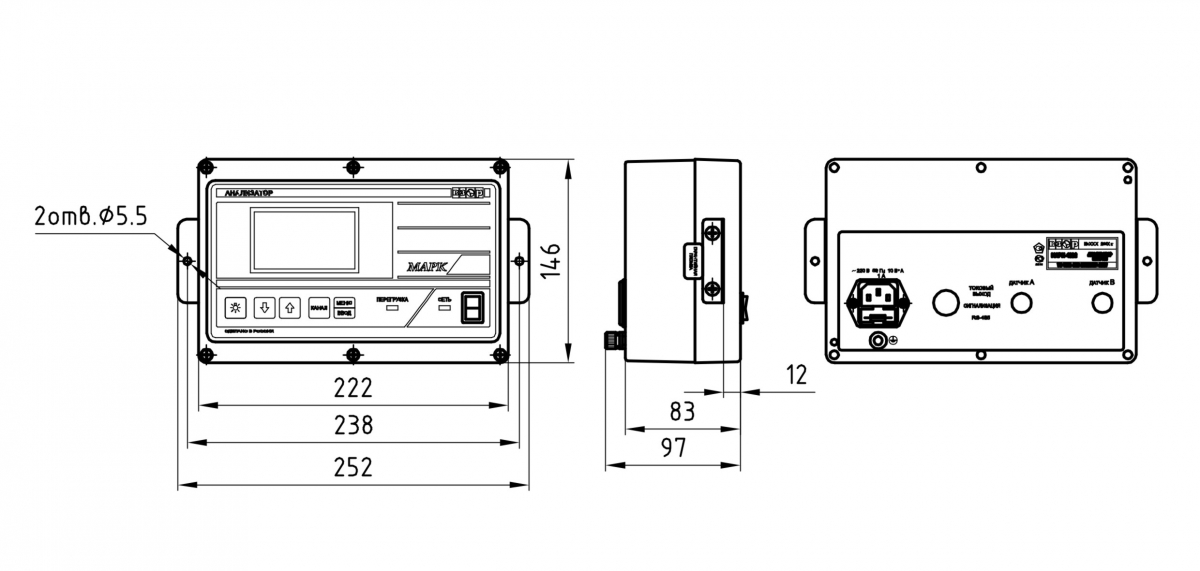

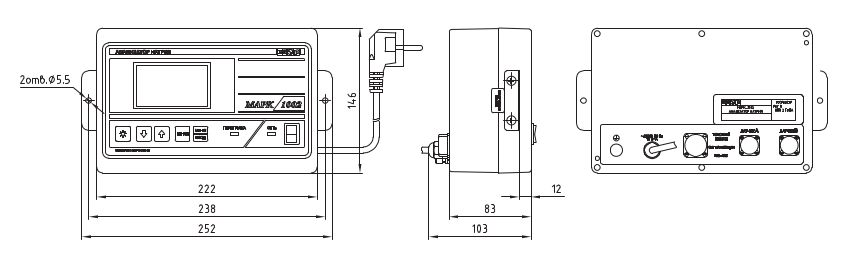

Panel mounting

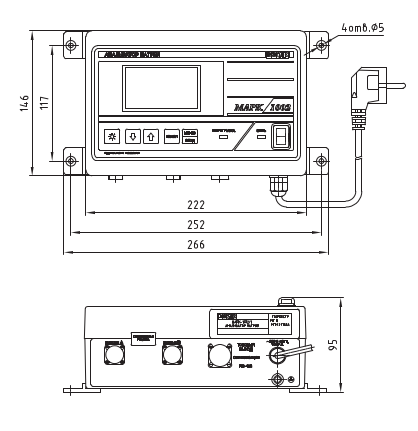

Wall mounting

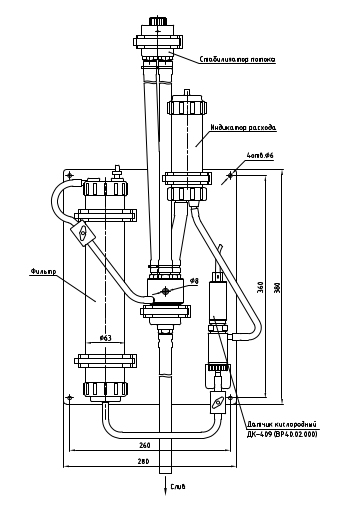

HP-409
Hydraulic panel or flow-stabilizing module МАRК-509
Flow-through chamber ВР11.03.000 МАРК-509
DH sensor ДВ-509 МАРК-509
