MARK-509А Dissolved hydrogen meter
Basic kit:
- Converting unit
- DH sensor
- Spare parts kit
- Calibrator
- Electrolyte
- Hydraulic panel HP-409 or flow-stabilizing module FSM-402M
- Operation manual
Optionally:
- DH sensor DH-509 for the second channel
- Hydraulic panel HP-409 or flow-stabilizing module FSM-402M for the second channel
- Extension cable up to 95 m
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Карта заказа МАРК-509А
Advantages
Patented unique sensor design |
Stable operation at hydrostatic pressure changes |
Permissible short-term (up to 5 min) pressure overload – (hydraulic shock) – up to 40 MPa |
Easy and quick membrane replacement |
Dry state storage is acceptable |
Calibration interval – 6 months |
Communication with external devices |
- Galvanic isolated current outputs 0–5/4–20/0–20 mA
- RS 485 port. Communication protocol MODBUS RTU
- Programmable setpoints with dry contacts outlet
Service life of at least 10 years
Mean time to failure 40 000 hours
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|
DH concentration, ppb |
0-200001 |
0,1 |
±(10+0,03*А) |
|
Temperature, °С |
0-70 |
0,1 |
±0,3 |
|
1 programmable C – measured value |
|||
|
|
Converting unit (Wall-mounted) |
ДК-509АВД |
|
|
Dimensions, mm |
266*170*95 |
Ø110х190 |
|
|
Weight, kg |
2,60 |
1,50 |
|
|
Power supply |
220 В, 50 Гц/ 10 В·А |
||
environment requirements
|
Temperature, °С |
+15 … +50 (analyzer), 0..+70 (sensor) |
|
Pressure, MPa, max |
не более 20,0 |
|
рН |
4-12 (analyzer), 6-12 (sensor) |
|
Analyzed water flow rate through the chamber, dm3/min |
0,1-0,5 |

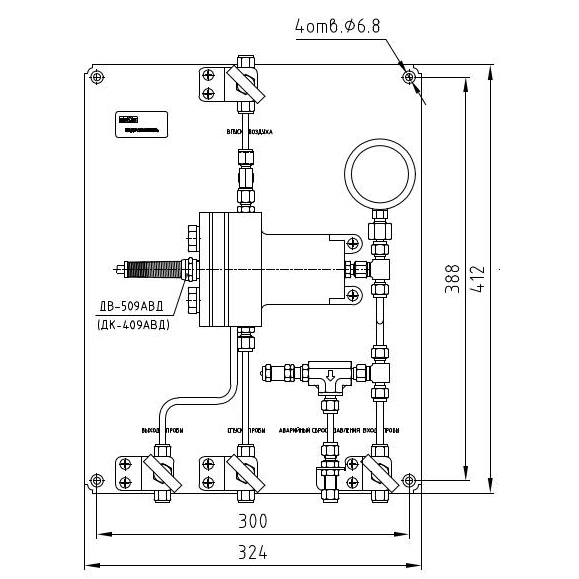

Габаритные и присоединительные размеры
Converting unit (panel-mounted)
Converting unit (Wall-mounted)

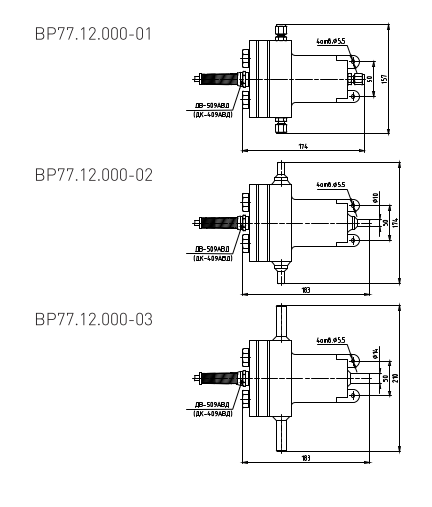

ВР77.12.000 для МАРК-509А
Sensor ДВ-509АВД для МАРК-509А
Flow-through chamber МАРК-509А
