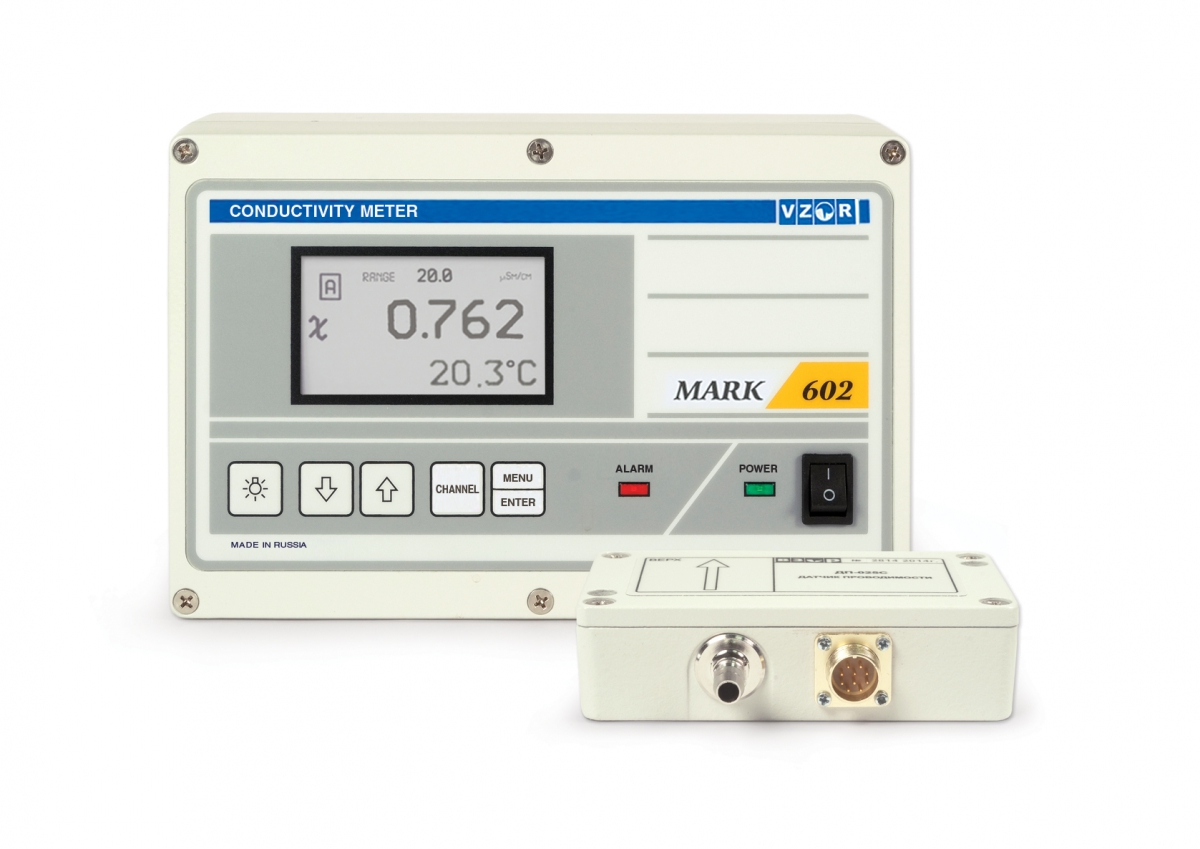

MARK-602 Conductivity meter
Basic kit:
- Converting unit
- Conductivity sensor CS-025C or CS-2C
- 5 meter connecting cable C602.5
Optionally:
- Conductivity sensor CS-025C or CS-2C for the second channel
- Connecting cable C602.L up to 100 m
- Hydraulic panel (HP-602, НР-602-01, НР-602-02, НР-602С)
The device is available in various configurations. Please, contact the manager.
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Карта заказа МАРК-602
Advantages
2 channels
Programmable ranges of measurements for each channel.
Independent measurements in two points.
Convenience and accuracy of measurement, minimum maintenance
Dual automatic temperature compensation.
Possibility of placing the converting unit on the remote distance from the point of control
Sensor cable length up to 100 m.
Communication with external devices
2 galvanic isolated current outputs 0–5/4–20/0–20mA.
RS 485 galvanic isolated port.
Programmable setpoints for each channel.
Durable case IP65
Instrument is protected from dust and moisture.
Graphic LCD display with backlight
Easy input of all parameters by keypad.
Service life of at least 10 years
Mean time to failure 40 000 hours
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|---|---|---|---|
|
Conductivity, µS/cm |
0-20001
0-200002
|
0,0001
|
±(0,004+2% of measured value)
±(0,03+2% of measured value)
|
|
Salinity, mg/L |
0-10001
0-100002
|
0,0001
|
±(0,003+0,025*С)
±(0,03+0,025*С)
|
|
|
*automatic temperature compensation range,
¹ with sensor CS-025C, ² with sensor CS-2C
|
||
|
Mounting |
Wall |
Panel |
|
|
Dimensions, mm |
266*170*95 |
252*146*100 |
|
|
Weight, kg |
2,60 |
2,60 |
|
|
|
|||
|
Power supply |
220 V, 50 Hz /10 V · А |
||
Environment requirements
|
Temperature, °С |
5-50
|
|
Sample flow rate, dm³/min |
0,05–0,5 (without hydraulic panel) 0,05–5 (with hydraulic panel) |
|
Ambient overpressure, bar, max. |
не более 0,0 |
Absence of agents forming nonconductive films and residues on metal surfaces
Overall and fixing dimensions
Panel mounting
Wall mounting
Conductivity sensor CS-025C or CS-2C
