MARK-602ld Conductivity meter
Basic kit:
- Converting unit
- Conductivity sensor CS-003LD
- 5 meter connecting cable C602LD.5
Optionally:
- Conductivity sensor CS-003LD for the second channel
- Connecting cable C602LD.L up to 100 m
- Hydraulic panel HP602/003M
- Flow-through chamber
- Kit for in-line mounting
The device is available in various configurations. Please, contact the manager.
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Карта заказа МАРК-602МП
Advantages
2 channels
Programmable ranges of measurements for each channel.
Independent measurements in two points.
Convenience and accuracy of measurement, minimum maintenance
Dual automatic temperature compensation, selectable linear coefficient of compensation.
Possibility of placing the converting unit on the remote distance from the point of control
Sensor cable length up to 100 m.
Communication with external devices
2 galvanic isolated current outputs 0–5/4–20/0–20mA.
RS 485 galvanic isolated port.
Programmable setpoints for each channel.
Durable case IP65
Instrument is protected from dust and moisture.
Graphic LCD display with backlight
Easy input of all parameters by keypad.
Service life of at least 10 years
Mean time to failure 40 000 hours
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|---|---|---|---|
|
Conductivity, µS/cm |
0-2001 |
0,0001 |
±(0,001+2% of measured value) |
|
Salinity, mg/L |
0-1001 |
0,0001 |
±(0,001+2,5% of measured value) |
|
|
*automatic temperature compensation range,
¹ programmable
|
||
|
Mounting |
Wall |
Panel |
|
|
Dimensions, mm |
266*170*95 |
252*146*100 |
|
|
Weight, kg |
2,60 |
2,60 |
|
|
|
|||
|
Power supply |
220 V, 50 Hz /10 V·А |
||
Environment requirements
|
Temperature, °С |
5-50 |
|
The medium rate perpendicular to the sensor axis, sm/sec, min. |
5 |
|
Ambient overpressure, bar, max. |
1,0 |
Overall and fixing dimensions
Panel mounting
Wall mounting
Hydraulic panels

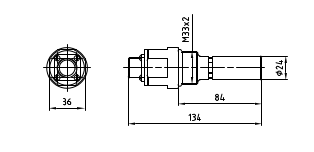

Conductivity sensor CS-003LD

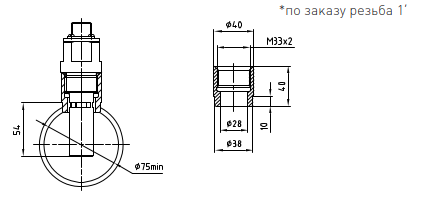

Flow-through chamber
Documents
Дополнительно
Гидропанель ГП-602/003 (для МАРК-602МП)
HP-602/003-02 Hydraulic panel
Кювета проточная ВР69.10.200 (для МАРК-602МП, МАРК-602Т)
Комплект монтажных частей для магистрали ВР30.10.400 (для МАРК-602МП и МАРК-602Т)
