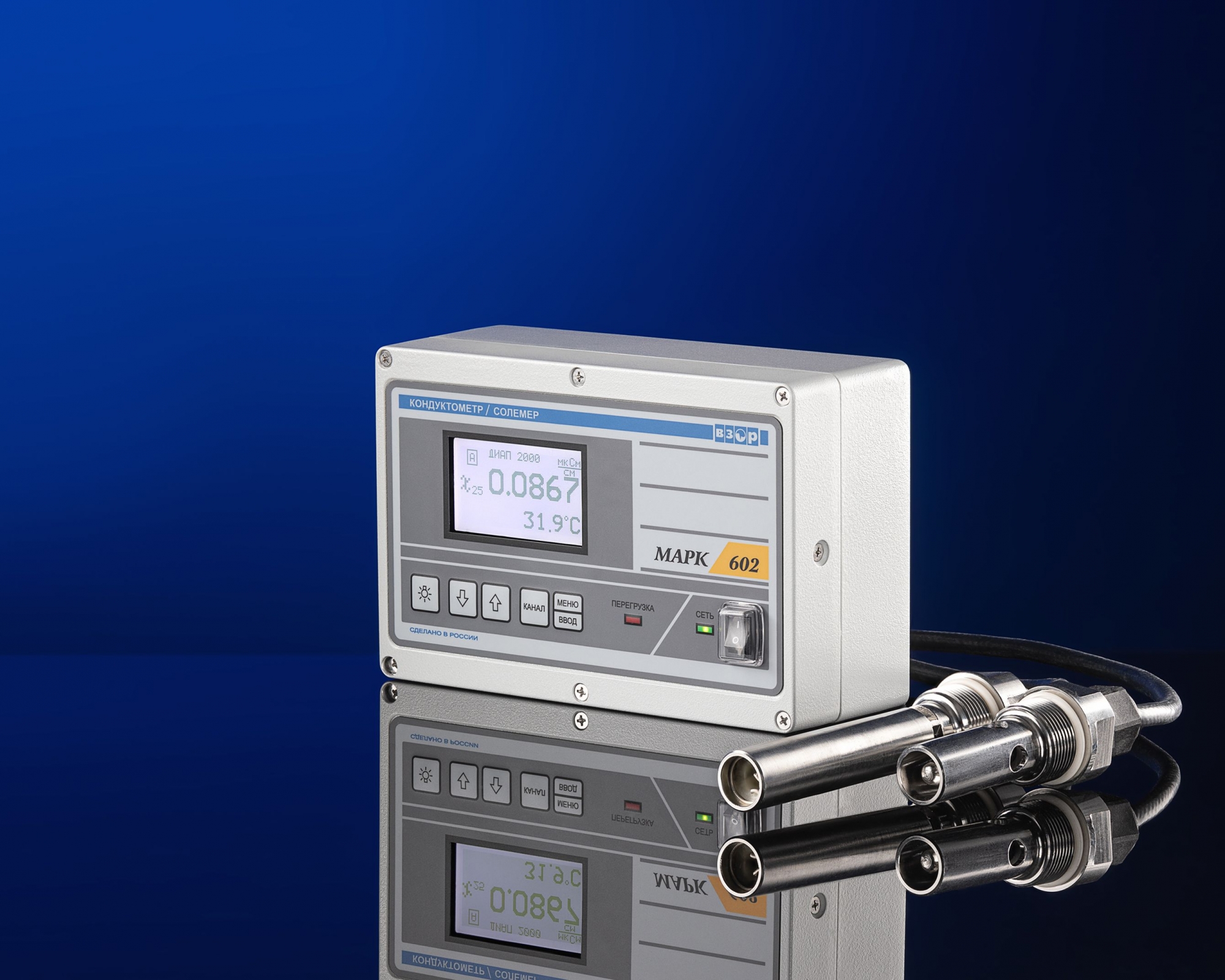

MARK-602T Conductivity meter
Basic kit:
- Converting unit
- Amplifier unit
- Conductivity sensor CS-003T or CS-3T
- 5 meter connecting cable C602T.5
- Operation manual
Optionally:
- Conductivity sensor CS-003T or CS-3T for the second channel
- Amplifier unit for the second sensor
- Connecting cable C602T.L up to 1000 m
- Hydraulic panel HP-602T
- Flow-through chamber
- In-line mounting kit
The device is available in various configurations. Please, contact the manager.
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Карта заказа МАРК-602Т
Advantages
2 channels
Programmable ranges of measurements for each channel.
Independent measurements in two points.
Convenience and accuracy of measurement, minimum maintenance
Dual automatic temperature compensation, selectable linear coefficient of compensation.
Possibility of placing the converting unit on the remote distance from the point of control
Sensor cable length up to 1000 m.
Communication with external devices
2 galvanic isolated current outputs 0–5/4–20/0–20mA.
RS 485 galvanic isolated port.
Programmable setpoints for each channel.
Durable aluminum case IP65
Instrument is protected from dust and moisture.
Graphic LCD display with backlight
Easy input of all parameters by keypad.
Service life of at least 10 years
Mean time to failure 40 000 hours
Specification
|
|
Sensor |
Measuring range |
Accuracy |
|---|---|---|---|
|
Conductivity, µS/cm |
ДП-3Т ДП-003Т |
0-20 000 |
±(0,03+ 2% of measured value)
±(0,001+ 2% of measured value)
|
|
Salinity, mg/L |
ДП-3Т |
0-10 000 |
±(0,03+ 2,5% of measured value)
±(0,001+2,5% of measured value)
|
| ρ, кΩ/сm |
ДП-3Т |
0,05-1 000 |
±(0,0005+2% of measured value)
±(0,05+2% of measured value)
|
|
Temperature, °С |
0-130* |
±0,3 |
|
|
* temperature compensation range 0-100 °C |
|||
|
Mounting |
Wall |
Panel |
|
|
Dimensions, mm |
266*170*95 |
252*146*100 |
|
|
Weight, kg |
2,60 |
2,60 |
|
|
|
|||
|
Power supply |
220V or 36V, 50Hz/15V·А |
||
Environment requirements
|
Temperature, °С |
0-130 |
|
Ambient overpressure, bar, max. |
16 |
Absence of agents forming nonconductive films and residues on metal surfaces
Overall and fixing dimensions

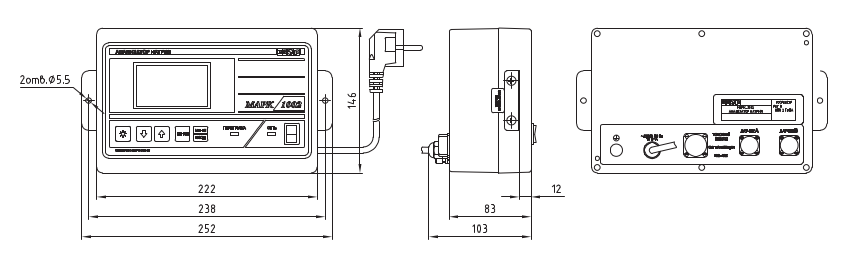

Panel mounting

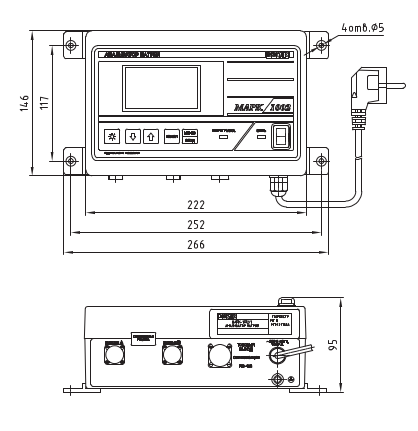

Wall mounting

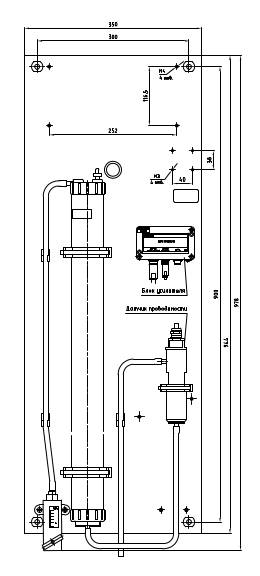

Hydraulic panel HP-602T
In-line mounting kit ВР30.10.400 МАРК-602Т
Mounting panel
Conductivity sensor CS-003T or CS-3T for the second channel
Amplifier unit ДП-3Т и ДП-003Т МАРК-602Т

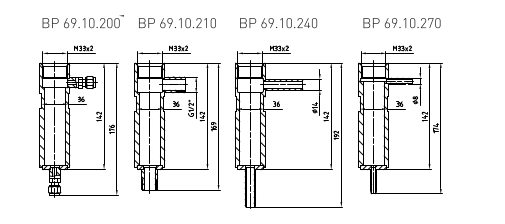

Flow-through chamber МАRK-602Т
