MARK-9010 pH-meter
Basic kit:
- Measuring module

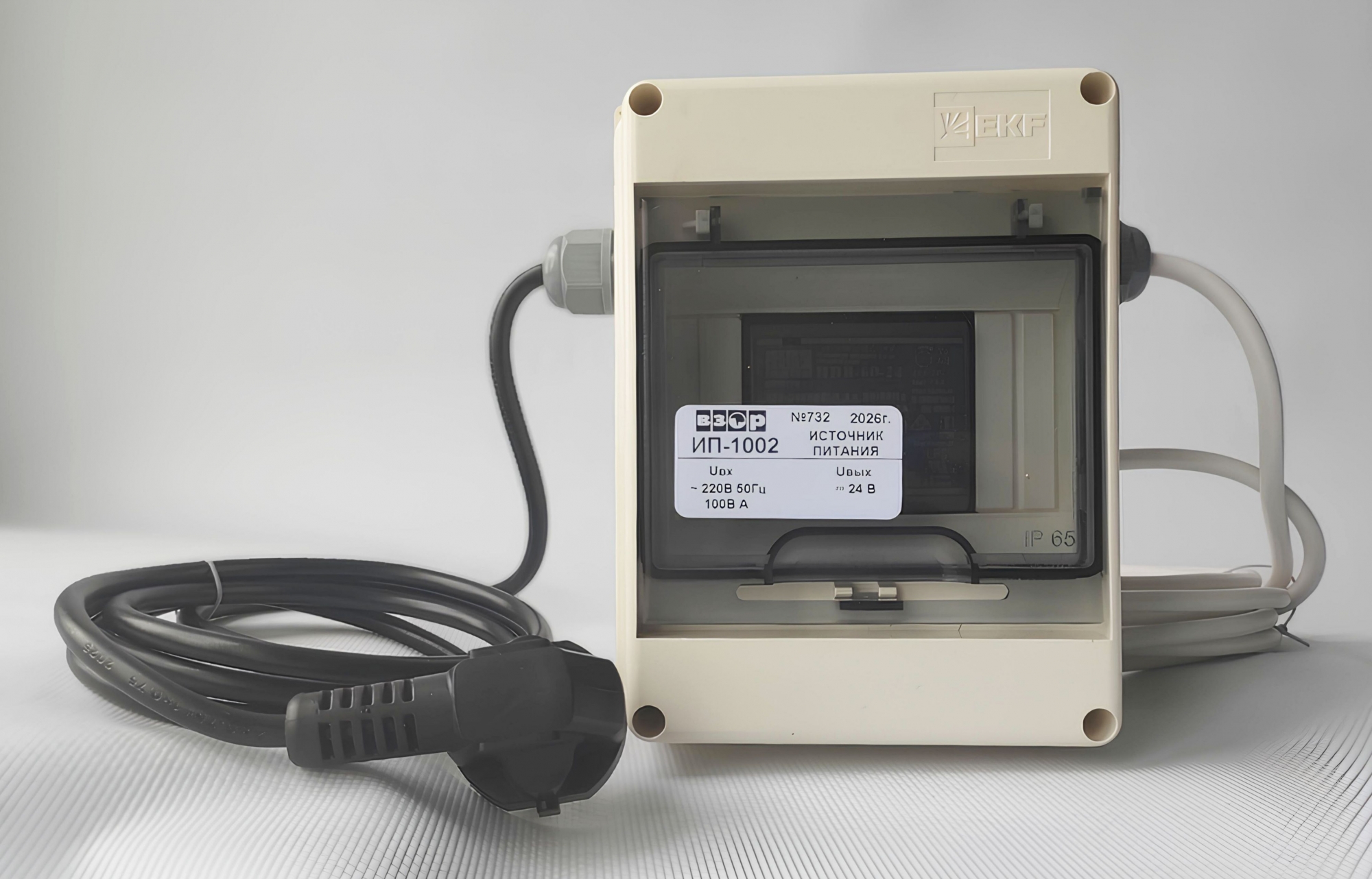

- Power supply unit
- Chemical agents stand
- Spare parts kit
- Operation manual
- Country of OriginRussia
- ManufacturerVZOR
- MobilityStationary
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Advantages
New patented way of measuring, which does not require calibration.
Absence of elements degrading in «high purity» water.
Intelligent algorithms of data operation.
Communication with external devices |
Galvanic isolated current outputs 0–5/4–20/0–20 mA.
RS 485 port. MODBUS RTU protocol.
Programmable «dry» contacts relays (6 pcs).
Durable aluminium case IP65 |
Dust and moisture protected.
The sole protecting case, uniting the secondary converter and hydraulic part.
Graphical touch screen 5.7’’, 65535 colours, 640*480 pixels screen resolution |
Service life of at least 10 years
Mean time to failure 40 000 hours
Specification
|
|
Measuring range |
Resolution |
Accuracy |
|---|---|---|---|
|
pH |
5.6-7.0
7.0-7.3
7.3-10.0
|
0,001
|
±0.05
±0.15
±0.05
|
|
Conductivity, mkSm/sm |
0-30 |
0,0001 |
±(0.003+2% of measured value) |
|
Temperature, °С |
0–50 |
0,1 |
±0,3 |
|
|
|
||
|
Mounting |
Wall |
||
|
Dimensions, mm |
800*295*130 |
||
|
Weight, kg |
10 |
||
Environment requirements
|
Conductivity, mkSm/sm, max. |
30 |
|
Temperature, °С |
5-50 |
|
Sample flow rate, dm3/min |
0,2-0,5 |
Documents

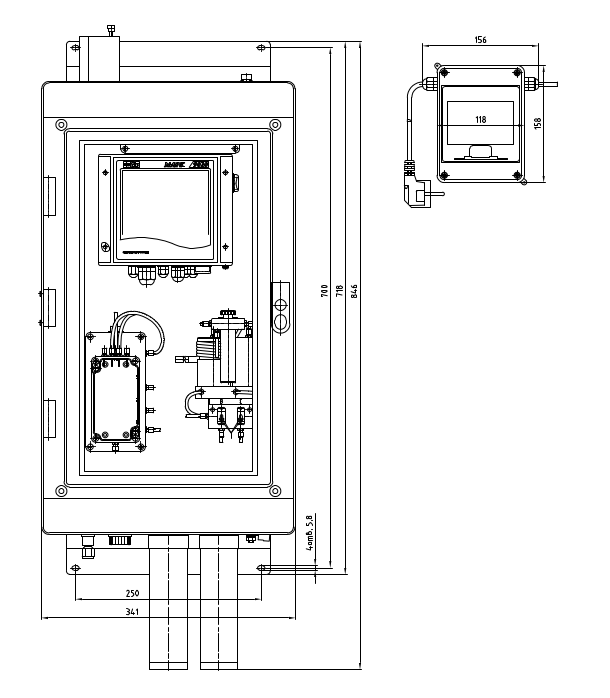

Габаритные и присоединительные размеры
Measuring module MARK-9010
