MARK-01mk Sample preparation unit

Cooling, restriction, filtration and regulation of the sample flow rate. Temperature, pressure and sample flow rate indication. Temperature, pressure and cooling water flow rate indication (optionally). Sample preparation for water chemistry monitoring instruments at power engineering facilities.

Optionally:

Cooling water rate display
Cooling water thermometer / manometer
Reserve coil for the main / additional heat-transfer unit

Country of OriginRussia
ManufacturerVZOR
WarrantyWarranty 12 months

The price depends on the configuration.
Specify the price from the manager!

on order

Ask for a price Ask a Question

Delivery

Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.

Payment

We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.

Advantages

Continuous monitoring of the sample parameters and data transfer via digital and current outputs.
Sample stable pressure maintaining.
Alarm sound and automatic shut off the sample in case of the regime violation.
Temperature and pressure thresholds for the sample automatic shut-off.
Blowdown valve of the control line.

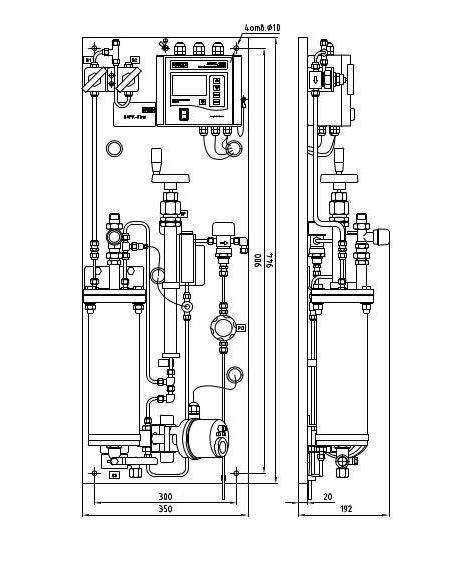

Compact stainless steel panel 350*944 mm.
One-way service.
Easy-clean dismountable heat-exchange unit.

Specification

Sample parameters	MARK-01MK version/
	7/40	7/250	7/560	32/40	32/250	32/560
Sample temperature at the sample preparation unit input, max,° C	40	250	560	40	250	560
Sample temperature at the additional heat-transfer unit output, max,° C	-	-	250	-	-	250
Sample pressure at the sample preparation unit input, max, MPa (kg/cm²)	7 (70)			32 (320)
Sample pressure at the sample preparation unit output, max, MPa	0,3 (3,00)
Sample temperature at the sample preparation unit output, max,° C	50
Sample flow rate range, dm³/h	0–60
Weight, kg, max	14	24	34	14	24	34
