Heat transfer unit HTU 290/HTU 160/ HTU 145
Базовый комплект:
- Теплообменник ТО-290, ТО-160 или ТО-145
Дополнительно:
- Комплект запасных частей к теплообменнику
- Комплект монтажных частей к теплообменнику
- Country of OriginRussia
- ManufacturerVZOR
- WarrantyWarranty 12 months
Specify the price from the manager!
- Delivery is possible by courier service, transport company, or any other method convenient for you. Delivery costs are borne by the Buyer.
- We work exclusively with legal entities. Payment is made to the current account of LLC "VZOR" based on the issued invoice.
Advantages
Continuous monitoring of the sample parameters and data transfer via digital and current outputs.
Sample stable pressure maintaining.
Alarm sound and automatic shut off the sample in case of the regime violation.
Temperature and pressure setpoints for the sample automatic shut-off.
Blowdown valve of the control line.
Compact stainless steel panel 350*944 mm.
One-way service.
Easy-clean dismountable heat-transfer unit.
Technical specifications
|
Sample parameters |
ТО-290 | ТО-160 | ТО-145 |
|
|
ВР59.10.100-01 | ВР59.14.100-02 | |
|
Inlet sample pressure to the UPP, MPa, maximum |
32 | 32 | 32 |
|
Inlet sample temperature to TO, °C, maximum |
560 | 560 | 560 |
|
Nominal heat exchange area, sq.m, maximum |
0,290 | 0,160 | 0,145 |
|
Sample flow rate through TO, dm³/h, maximum Liquid sample Vapor sample |
100 60 |
100 60 |
100 60 |
|
Internal diameter of the housing, mm, maximum |
102 | 127 | 80 |
|
Internal diameter of the coil, mm, maximum |
4 | 6 | 4 |
|
Overall dimensions, mm, maximum |
130*560*175 | 215*620*230 | 110*560*150 |
| Weight, kg, maximum | 9,50 | 15,0 | 6,10 |
Cooling water parameters
|
Inlet pressure, MPa |
от 0,3 до 1,0 | от 0,3 до 1,0 | от 0,3 до 1,0 |
|
Temperature, °C |
|||
| at inlet, maximum | 35 | 35 | 35 |
| - at outlet, maximum | 60 | 60 | 60 |
|
Cooling water flow rate, dm³/h, maximum |
2100 | 2100 | 2100 |

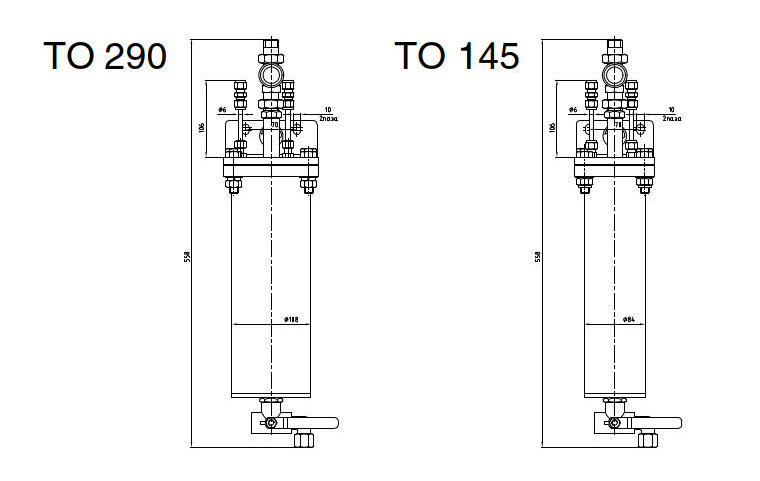

Dimensions and mounting dimensions
